ESD FLOORING

ESD flooring, supplied and installed

Modular anti-static floor tiles that protect sensitive electronics and static-controlled environments, laid straight over your existing floor with no adhesives, and backed by a 10-year warranty. Installed, tested and certified nationwide by our own team.

300+ 5-star Google reviews

Checkatrade accredited

10-year warranty

Made in the UK

Installed nationwide

300+ 5-star Google reviews

Checkatrade accredited

10-year warranty

Made in the UK

Installed nationwide

BUILT FOR STATIC-SENSITIVE ENVIRONMENTS

Reliable static protection for sensitive spaces

Our ESD modular floor tiles protect microelectronics, sensitive equipment and high-risk environments from static discharge, and are trusted by hundreds of businesses worldwide to prevent costly static damage, equipment failure and spark-related risk. Whether you need to protect delicate components, reduce fire risk in hazardous areas, or create a fully compliant Electrostatic Protected Area (EPA), our flooring delivers a practical, long-lasting solution — installed directly over your existing floor and ready to use immediately after fitting.

Every installation is completed and tested on site by our white-glove installation team, so you can be confident the system performs exactly as required.

R10 Anti-slip rating

Anti-slip rating

Material

R10

Fire performance

Bfl-S1

Fits over

Existing concrete

Warranty

10 years

WHERE IT WORKS

One tile system, every static-sensitive space

From electronics production to hazardous storage areas, our ESD flooring is specified wherever static discharge is a risk.

Electronics & microelectronics manufacturing

Protects delicate components from costly static damage and equipment failure.

Hazardous & explosive-risk areas

Reduces spark-related fire risk in sensitive industrial environments.

Electrostatic Protected Areas (EPA)

A complete solution for creating a fully compliant EPA.

Server, data & control rooms

Safeguards sensitive equipment from static-related failure.

Leased, temporary & evolving spaces

Fully reusable tiles that can be lifted, reconfigured or relocated.

Busy commercial & industrial sites

Immediate protection that keeps pace with operational demands.

WHY CHOOSE OUR TILES

Everything ESD flooring needs

ESD protection

Prevents electrostatic discharge to safeguard electronics in static-sensitive spaces.

Compliant with ESD standards

Meets BS EN 61340-5-1-2010 for Electrostatic Protected Areas.

Quick installation

Interlocking tiles make fitting fast, with minimal disruption.

10-year warranty

Long-lasting and cost-effective, with a lifespan exceeding 20 years.

Anti-slip certified (R10)

Reliable surface traction in safety-critical environments.

Chemical & abrasion resistant

Built for industrial use, resistant to spills and surface damage.

Sound absorbing

Reduces ambient noise in busy technical and production spaces.

Eco-friendly

Made from fully recyclable PVC, sustainable without compromising performance.

THE DETAIL

Technical specification

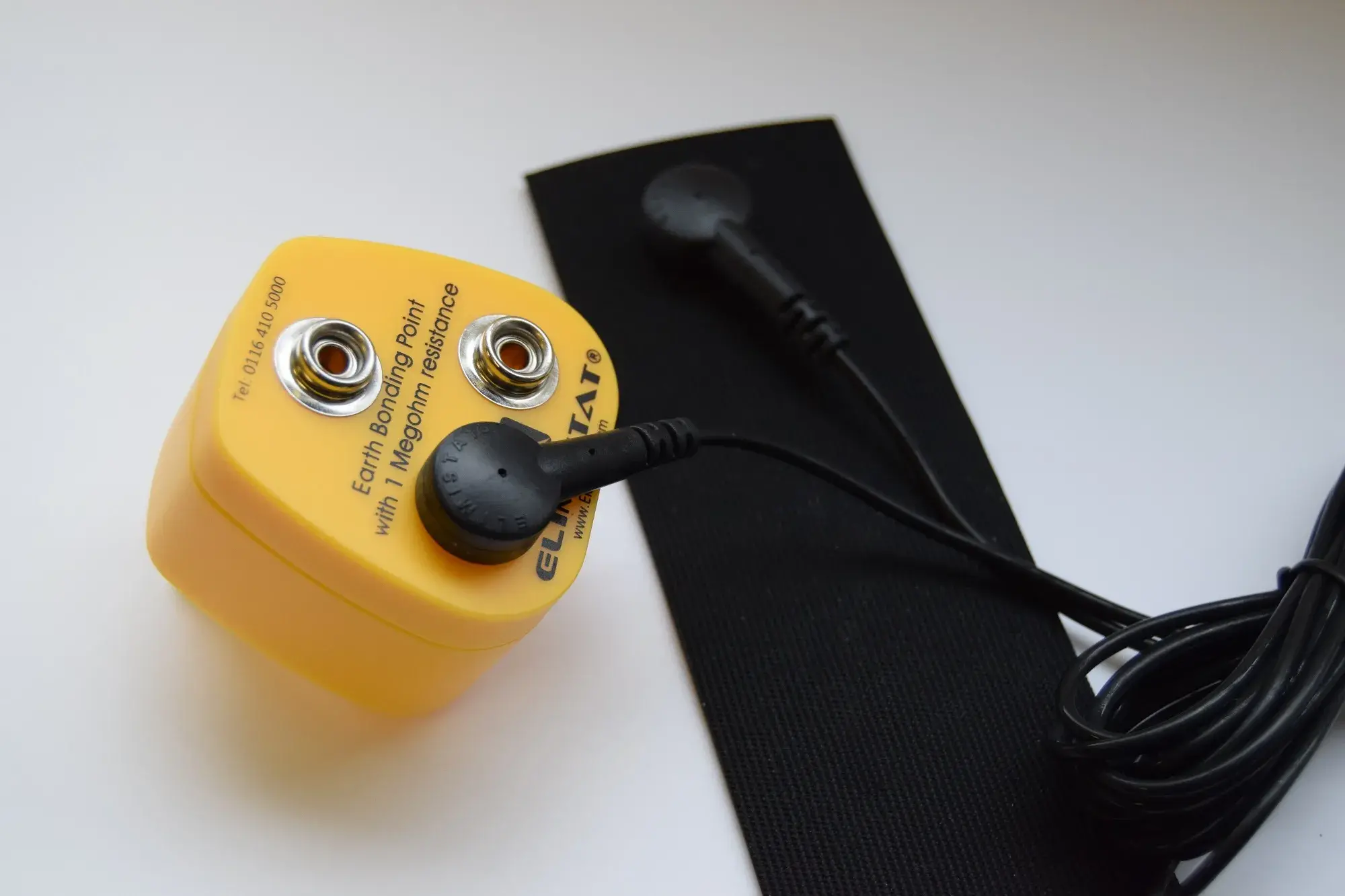

Every tile is manufactured from high-quality PVC and reinforced with stainless-steel microfibres, creating a continuous conductive grid — with a grounding stud installed every 60m² and connected to an earthing point — that safely disperses static charges to ground. Unlike surface-coated alternatives, our tiles retain their static dissipative properties for the lifetime of the floor. Following installation, we test your floor to the specific resistance requirements of your application and provide written certification for your compliance records.

Finish

Smooth

Material

PVC

Resistance

>3.4×10⁴Ω and ≤5.0×10⁶Ω

Body voltage

<100 volts

Dimensions

497mm × 497mm

Thickness

7mm & 5mm

Weight

8.40kg/m² (5.68kg/m² – 5mm)

Slip resistance

R10

Fire performance

Bfl-S1

Chemical resistance

Good — EN 13529

Warranty

10 years

HOW IT WORKS

From first call to certified floor

Free site survey

We visit, measure up and advise on the right ESD solution for your space.

Samples & fixed quote

See and feel the tiles, then get a clear, fixed price — no surprises.

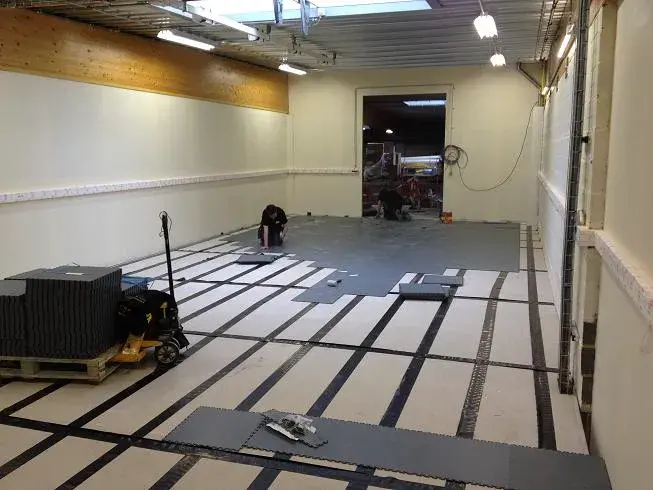

Professional install

Our white-glove team fits your floor and tests it against your required resistance levels.

Certification & aftercare

Written compliance certification, plus a 10-year warranty and optional ongoing testing schedules in line with BS EN 61340-5-1-2010.

TRUSTED WORLDWIDE

Specified by leading brands

BMW

Mercedes-Benz

eBay

Hexis

Urban Automotive

Yiannimize

BMW

Mercedes-Benz

eBay

Hexis

Urban Automotive

Yiannimize

“Kitted out our whole strength floor over a weekend – no mess, no downtime, and it’s taken everything we’ve thrown at it since.”

James M. Commercial gym, Hertfordshire

“Looks fantastic and the install team were spot on. Clients constantly comment on the floor. Would use Garage Style again in a heartbeat.”

Sarah T. PT studio, London

CASE STUDIES

Proven Results Across the UK

ESD Floor Installation

Challenge

Static discharge threatened sensitive electronic component production.

Solution

Installed certified ESD floor tiles throughout the production area.

Server Room Upgrade

Challenge

Existing flooring lacked reliable protection against electrostatic discharge.

Solution

Installed anti-static PVC tiles with integrated grounding system.

EPA Floor Fit-Out

Challenge

New facility required a fully compliant Electrostatic Protected Area.

Solution

Installed modular ESD flooring with on-site testing and certification.

GOOD TO KNOW

ESD flooring FAQs

Q1: Do you test and certify the floor after installation?

Yes — we test your floor to the specific resistance requirements of your application and provide written certification for your compliance records.

Q2: What standard does the flooring meet?

Our ESD tiles are compliant with BS EN 61340-5-1-2010 for Electrostatic Protected Areas.

Q3: Can individual tiles be replaced if damaged?

Yes — simple tile replacement keeps your floor performing and helps maintain compliance.

Q4: Can it be installed over our existing floor?

Yes — no adhesives, specialist floor preparation or moisture barrier are required, and the floor can be used immediately after fitting.

Q5: Do you offer ongoing testing or maintenance?

Yes — in line with BS EN 61340-5-1-2010 guidance, we can carry out annual testing or more frequent inspections to suit your operational needs.

GET STARTED

Get a free quote for your ESD flooring

Tell us about your space and we’ll come back with advice, samples and a fixed price. Prefer to talk? Call 01707 229800.

No obligation. We’ll never share your details.

Samples & fixed quote
